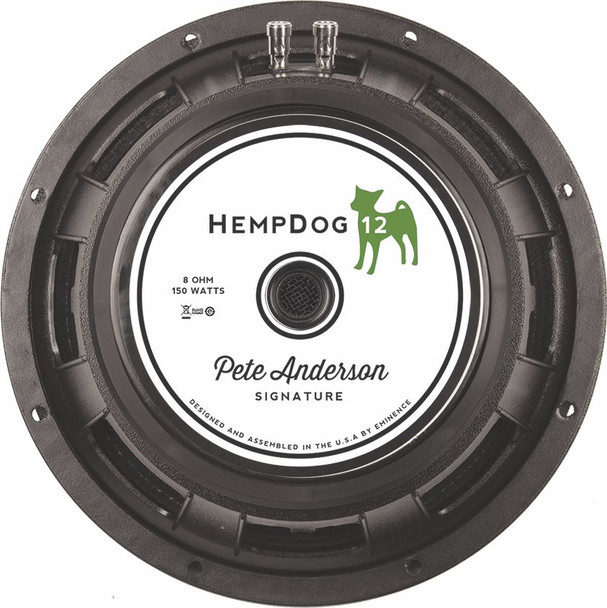

Eminence HEMPDOG12 150w 12",2.5"vc,8ohms

This item is brand-new, factory sealed.

This table charts the specifications for the HempDog_12 speaker
* Nominal Basket Diameter: 12-in , 0 mm.
* Nominal Impedance*: 8 Ohms.
* Power Rating*.
* Program Power: N/A.
* Watts: 150 W.
* Resonance: 69 Hz.
* Usable Frequency Range: 80 Hz - 3.8 kHz.
* Sensitivity*: 102.3 dB.
* Magnet Weight: 80 oz..
* Gap Height: 0.37-in , 9.5 mm.
* Voice Coil Diameter: 2.5-in , 64 mm.
* Thiele & Small Parameters.
* Resonant Frequency (fs): 69 Hz.
* DC Resistance (Re): 6.55 Ohms.
* Coil Inductance (Le): 0.41m H.
* Mechanical Q (Qms): 10.02.
* Electromagnetic Q (Qes): 0.36.
* Total Q (Qts): 0.35.
* Compliance Equivalent Volume (Vas): 74.33 liters / 2.62 cu.ft..
* Peak Diaphragm Displacement Volume (Vd): 69.3 cc.
* Mechanical Compliance of Suspension (Cms): 0.18 mm/N.
* BL Product (BL): 15.23 T-M.
* Diaphragm Mass Inc. Airload (MMs): 30 grams.
* Efficiency Bandwidth Product (EBP): 191.
* Maximum Linear Excursion (Xmax): 1.27 mm.
* Surface Area of Cone (Sd): 545.4 cm2.
* Maximum Mechanical Limit (Xlim): 0 mm.
-----------------------------------
Recommended Enclosure Volume;
* Sealed:
N/a .
* Vented:
N/a .
* Driver Volume Displaced: 0.003 cu.ft. / 0.09 liters.
* Overall Diameter: 12.38-in , 314.5 mm.
* Baffle Hole Diameter: 11.07-in , 281.2 mm.
* Front Sealing Gasket: Yes.
* Rear Sealing Gasket: Yes.
* Mounting Holes Diameter: 0.26-in , 6.6mm.
* Mounting Holes B.C.D.: 11.57-in , 293.9mm.
* Depth: 5.38-in , 136.7 mm.
* Net Weight: 16.3 lbs, 7.39 kg.
* Shipping Weight: 18 lbs, 8.16 kgs.
* Materials of Construction.
* Coil Construction: Edge Wound Aluminum.
* Coil Former: Polyimide former.
* Magnet Composition: Ferrite.
* Core Details: Vented core.
-----------------------------------.
* Basket Materials: Die-cast aluminum basket.
* Cone Composition: Paper cone.
* Cone Edge Composition: Paper cone edge.
* Dust Cap Composition: Paper dust cap.
