Startech.com 2 Port Pci Express [pcie] Superspeed Usb 3.0 Card Adapter With Uasp - Lp4 Power - Pci Express X1 - Plug-in Card - 2 Usb Port[s] (pexusb3s25)

This item is brand-new, factory sealed.

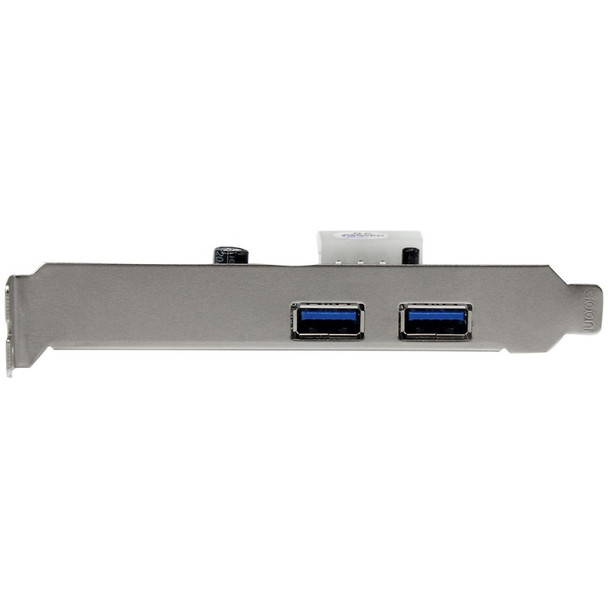

The PEXUSB3S25 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.Hardware
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
NEC - PD720202
Industry Standards
USB 3.0 Specification Rev. 1.0
USB Battery Charging Specification Rev. 1.2
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Interface
USB 3.0
Port Style
Integrated on Card
Ports
2Connector(s)
Connector Type(s)
1 - PCI Express x1 Male
External Ports
2 - USB 3.0 A (9 pin SuperSpeed) Female
Internal Ports
1 - LP4 (4 pin Molex Large Drive Power) MalePerformance
Maximum Cable Length
9.8 ft 3 m
Maximum Data Transfer Rate
5 Gbps
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
YesSoftware
OS Compatibility
Windows 8.1 (32/64bit), 8 (32/64), 7 (32/64), Vista(32/64), XP(32/64)
Windows Server 2012, 2008 R2 , 2003 (32/64)
Linux Kernel 2.6.31 or laterSpecial Notes / Requirements
Note
Devices that do not comply with the USB Battery Charging Specification may only receive standard USB power.
System and Cable Requirements
Available PCI Express slotIncluded in Package
1 - PCIe USB 3.0 Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction ManualWeight
0.29
Item Dimension
6.57 x 5.51 x 1.10
Warranty Information
2 Year Warranty
